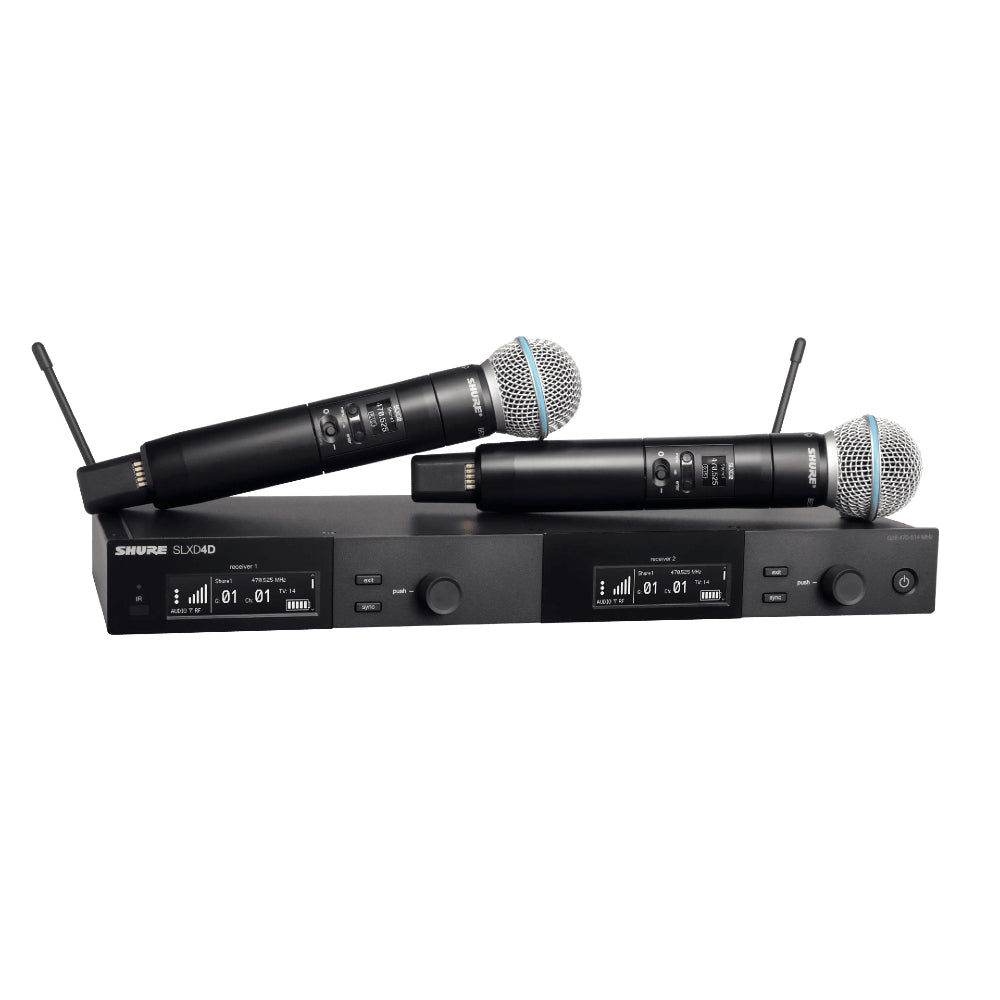

SLXD24D/B58 Dual Wireless System with 2 SLXD2/B58 Handheld Transmitters (470 to 514 MHz)

The Shure SLXD24D/B58 offers two presenters or performers a dual-channel wireless handheld microphone system that's dependable, easy to set up, and features crystal-clear, digital sound quality. Built around a rugged, dual-channel, single rack receiver with removable antennas, the system is ideally suited for portable rigs or long-term installations in small- to medium-sized venues, event spaces, conference rooms, houses of worship, and education facilities.

The SLX-D operates in the UHF band to transmit high-quality, 24-bit digital audio with over 120 dB of dynamic range for crisp, detailed sound. It utilizes Digital Predictive Switching Diversity to protect the transmission from interference and deliver a solid, reliable RF signal without dropouts.

This configuration includes two SLXD2 handheld transmitters, each featuring an interchangeable microphone capsule design and equipped with a Beta 58A dynamic capsule. The Beta 58A has a supercardioid pickup pattern that focuses on speech, helping to reduce feedback on loud stages. The lightweight metal transmitters feature a selectable 1/10mW RF power output and a transmission range up to 330'. Power is supplied by two AA batteries or an SB903 rechargeable battery (available separately) for up to 8 hours.

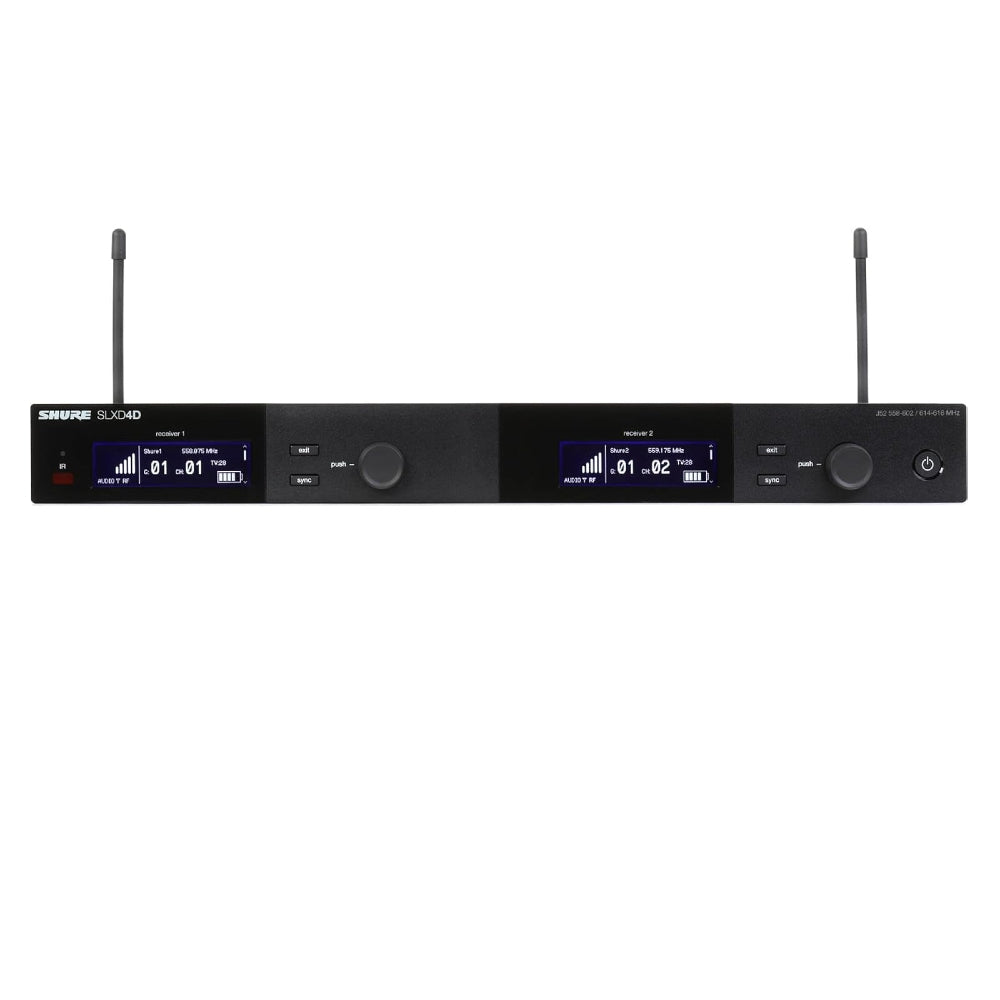

The all-metal, rackmount SLXD4D receiver features an intuitive LCD interface with meters for RF, battery status, and audio outputs. It also offers 60 dB of gain control, and both mic/line XLR and 1/4" instrument outputs for each channel. Additional features include automatic frequency scanning and IR sync to easily link the transmitter and receiver to the same frequency.

With up to 32 mic channels available at the same time, the SLX-D is ready to expand as your needs grow. What’s more, setting up multiple systems is made fast and easy via the Ethernet port, which links them together for quick, coordinated frequency scans from a single receiver.

• For Two Presenters or Performers
• 2 x Beta 58A Dynamic Supercardioid Mics
• 2 x Handheld Transmitters
• Dual-Channel Digital Diversity Receiver
• 1760 Auto-Scan Frequencies
• 1/10mW RF Output
• LCD Screens, Ethernet for Group Scans
• Interchangeable Mic Capsule Design
• Compatible with 8-Hr Rechargeable SB903
• Expandable to 32 Mic Channels/330' Range

• Simultaneous Systems Per Band:32
• System: Analog/Digital:Digital
• System: Frequency Range: 470 to 514 MHz
• System: Operating Range:328 ft. Line-of-sight
• System: Frequency Response:20Hz-20kHz
• System: Microphone Included:2 x SLXD2 Transmitters with Beta58 Mic Capsules
• System: Channel Selection:Auto
• Microphone: Type:Dynamic
• Microphone: Polar Pattern:Supercardioid
• Microphone: Max SPL:145dB SPL
• Microphone: Frequency Response:50Hz-16kHz
• Transmitter: Form Factor:Handheld with Mic Capsule
• Transmitter: Dynamic Range:120dB (A-weighted)
• Transmitter: Battery Type:2 x AA, SB903 Rechargeable Li-ion
• Transmitter: Battery Life:8 hours
• Transmitter: Dimensions:6.9" x 1.4"
• Transmitter: Weight:0.32 lbs.
• Receiver: Antenna Type:Detachable
• Receiver: Type:Rackmount, Table Top
• Receiver: Rackmountable:Yes
• Receiver: Rack Spaces:1U
• Receiver: Displays:LCD
• Receiver: Outputs:2 x XLR, 2 x 1/4"
• Receiver: Data I/O:1 x Ethernet
• Receiver: Power Source:15V DC power supply
• Receiver: Dimensions:1.65" x 15.5" x 5.9"
• Receiver: Weight:3.2 lbs.
