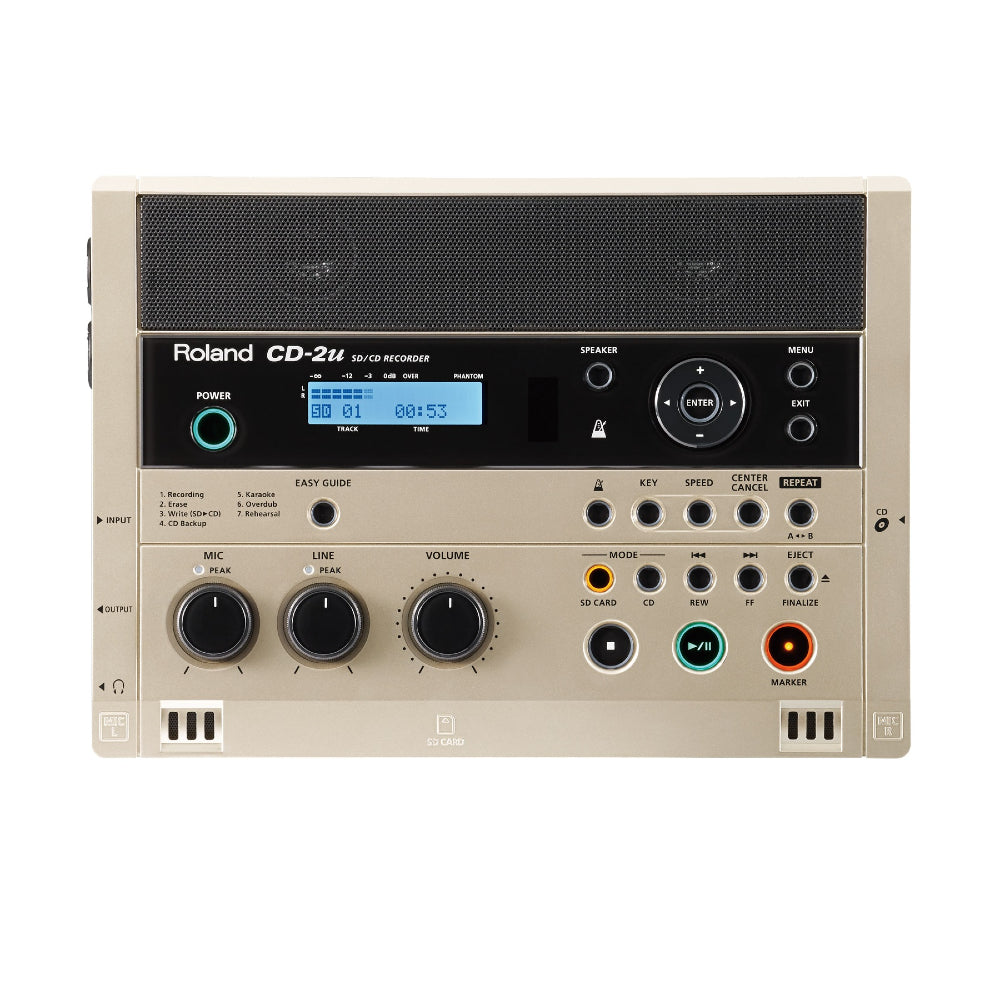

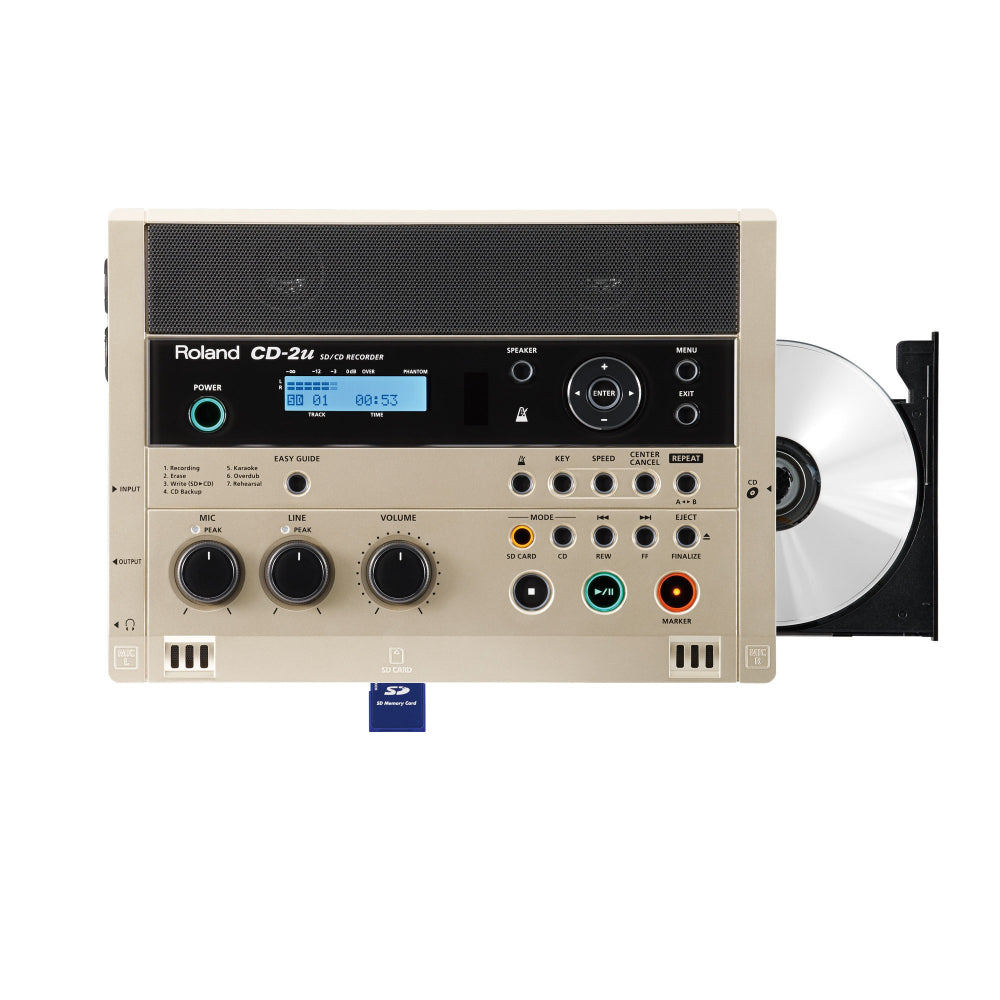

Roland CD-2U SD/CD Portable Recorder

The Roland CD-2U SD/CD Recorder sports a high-quality onboard stereo mic that gives you simple, “point-and-capture” recording direct to CD-R/RW or an SD card. The CD-2u features XLR, 1/4″, and RCA inputs for connecting other mics and equipment, as well as phantom power, built-in speakers, and even a phono equalizer. For effortless recording to today’s popular media, the compact and affordable Roland CD-2U SD/CD Recorder is a no-brainer.

Leave the computer at home—with the CD-2u SD/CD Recorder, it’s easier than ever to capture quality recordings and play and burn CDs anywhere! Record audio instantly with the built-in stereo mic, or connect your own external mics, electronic musical instruments, and other devices with professional results. Onboard are many training tools for lessons and practice, including CD and WAV audio playback, high-fidelity key and speed adjustment, improved Center Cancel, and the all-new Center Focus. Essentials such as a chromatic tuner and metronome are included as well. Ultra-compact and easy to use, the CD-2u is your perfect solution for playing, recording, and CD burning in a convenient mobile package.

Roland CD-2U SD/CD Recorder Features

-Simple recording direct to CD-R/RW or SD memory card
-All-in-one portable design, compact and stylish
-High-quality sound via built-in stereo microphone and speakers
-Center Cancel function, Center Focus function
-Rehearsal function aids users in setting optimal input level for recording
-Two XLR/14″ combo jacks with phantom power; Plug In Power microphone jack
-Stereo RCA Line/Phono-in jacks
-Powered by 6 AA batteries; AC adaptor included
-Easy-to-use interface with Easy Guide function

Tracks

2 tracks (stereo)

Sampling Frequency

44.1 kHz

Signal Processing

AD/DA conversion: 24 bits

Recording Mode

SD/SDHC Memory Card: WAV (44.1 kHz, 16 bits)
CD-R, CD-RW: Audio CD

Recording Media

SD Memory Card (supports 512 MB to 2 GB)
SDHC Memory Card (supports 4 GB to 16 GB)
CD-R
CD-RW

Recording Time (unit: min)

CD-R or CD-RW disc
650 MB: 74
700 MB: 80

SD Memory Card
512 MB: 47
1 GB: 94
2 GB: 189

SDHC Memory Card
4 GB: 377
8 GB: 755
16 GB: 1511

* Each recording time is approximate. The times may change depending on the card specifications.
* In case that there are plural files, the sum of recording time would be shorter than above.
* Maximum recording time of one song is 74 minutes.

Recording Songs

Up to 99 songs on a single SD/SDHC Memory Card, CD-R, or CD-RW

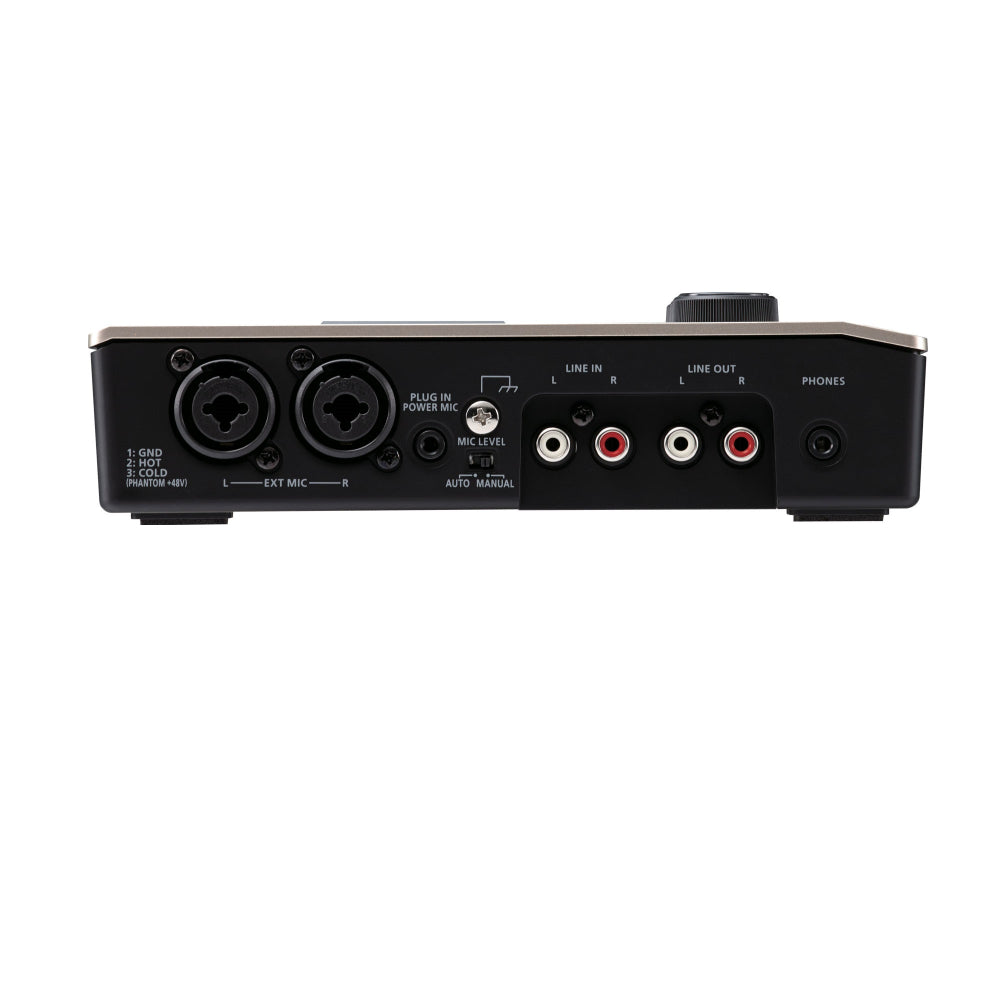

Input/Output

Audio Input

Internal Stereo Microphones
Internal Stereo Microphones
EXT MIC (L, R) jacks: XLR type (balanced/phantom power DC 48 V, 8 mA Max.), 1/4-inch TRS phone type (balanced/unbalanced)
PLUG IN POWER MIC jack: Stereo miniature phone type
LINE IN (L, R) jacks: RCA phono type

Frequency Response

20 Hz to 20 kHz (+0 dB/-2 dB)

Nominal Input Level (variable)

EXT MIC (L, R) jacks: -51 to -8 dBu (common to XLR type and 1/4-inch phone type)
PLUG IN POWER MIC jack: -51 to -13 dBu
LINE IN (L, R) jacks: -24 to -4 dBu

Input Impedance

EXT MIC (L, R) jacks: 8 k ohms (common to XLR type and 1/4-inch phone type)
PLUG IN POWER MIC jack : 10 k ohms
LINE IN (L, R) jacks: 28 k ohms

Output Impedance

LINE OUT (L, R) jacks: 1 k ohm
PHONES jack: 32 ohms

Other

Display

16 characters, 2 lines (backlit LCD)

Power Supply

AC adaptor
Alkaline battery (AA, LR6) x 6
Rechargeable Ni-MH battery (HR6) x 6

Current Draw

1000 mA
* Expected battery life under continuous use
Alkaline battery (AA, LR6): Approx. 5.5 hours
Rechargeable Ni-MH battery (AA, HR6): Approx. 6 hours
The time may vary according to usage conditions, batteries used, and type of SD memory card used.

Accessories

Owner's Manual
Quick Start
Remote controller (with battery CR2025)
AC adaptor
Power cord
SD memory card
SD card protector
CD-R Disc (Blank media)

Options (sold separately)

Carrying Case: CB-CD2E
Stereo Microphone: CS-15RS
Stand: SS-PC1

Size and Weight (excluding batteries and AC adaptor)

Width

278 mm
11 inches

Depth

196 mm
7-3/4 inches

Height

55 mm
2-3/16 inches

Weight

1.4 kg
3 lbs. 2 oz.
