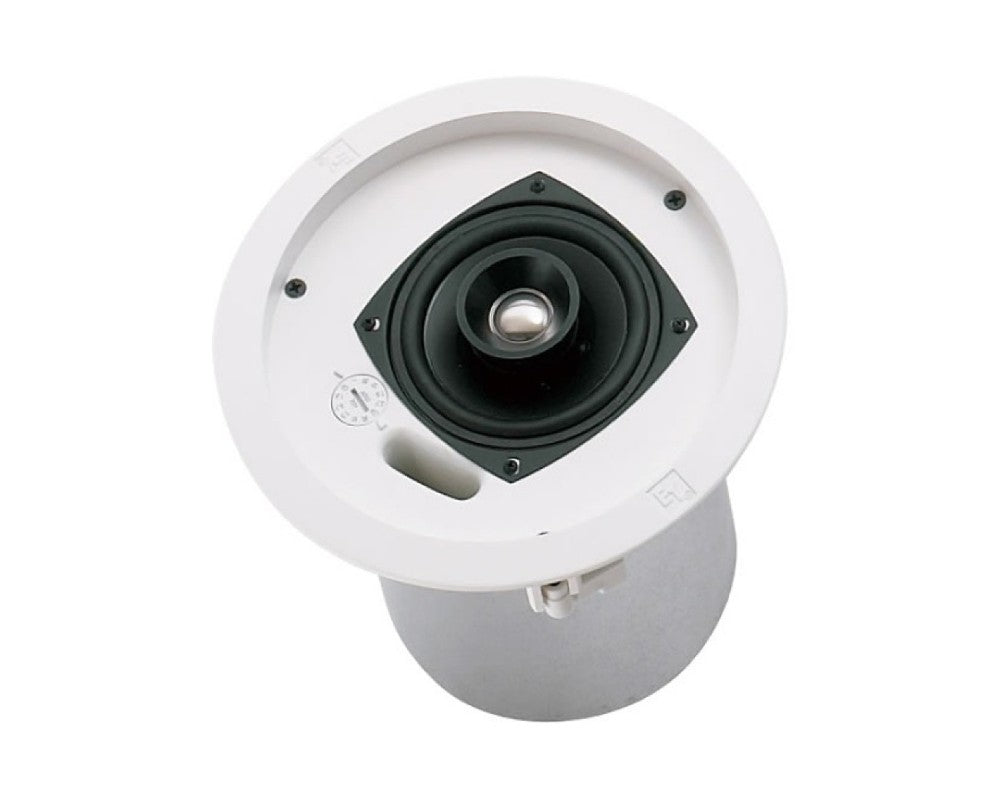

Electro-Voice EVID C4.2D 4″ 2‑way coaxial ceiling loudspeaker
Regular price
QAR 1,100
QAR 825
Only 2 left - Selling fast
Share on:
SKU : EL*C4.2D
Electro-Voice EVID C4.2D 4″ 2‑way coaxial ceiling loudspeaker
QAR 825
Electro-Voice EVID C4.2D 4″ 2‑way coaxial ceiling loudspeaker
Product Description
The Electro-Voice EVID C4.2D is ported and tuned to provide surprising bass response in such a compact package. Perfect for conventional rooms, its compact design fits in tight areas and has excellent bandwidth in an aesthetically unobtrusive installation profile. Its 4-inch woofer and waveguide-coupled, titanium-coated dome tweeter give smooth, wide frequency response. An easy 3-point mounting system is included for quick installations. Electro-Voice loudspeakers use innovative design and materials to provide premium-level performance in a flush-mount ceiling format. EVID C4.2D with a 4-inch LF driver and a 0.75-inch, titanium-coated tweeter with waveguide.
For further information on Electro-Voice EVID C4.2D coaxial ceiling loudspeaker, kindly check the data sheet link EVID C4.2D
Freq. Range (-10dB): 65Hz–20kHzCoverage (Conical): 130°
Power Handling: 50W Cont. / 200W Peak
Sensitivity (SPL 1W/1m): 86dB
Max Calculated SPL: 103dB Cont./109dB Peak
Impedance: 8Ω nominal (transformer bypass)
Network: Network and transducers
protected, 12dB/oct 3.3kHz
LF Transducer: 4 in. (100mm) Polypropylene cone
HF Transducer: .75 in. (19mm) Ti Mylar laminate
Transformer Taps: 70V: 1.88, 3.75, 7.5, 15, or 30W
100V: 3.75, 7.5, 15, or 30W
Bypass: 8Ω
Connectors: C4.2: Phoenix type removable, with
screw terminals and “loop-thru”,
accepts 12 ga wire
C4.2D: Fire-safety rated input
block, 3 terminal barrier strip
accepts 12 ga wire
Enclosure Material: Baffl e - UL 94V-O rated ABS
Backcan - Zinc plated steel
Grille: Perforated powder-coated steel
with safety tether
Support Hardware: Tile bridge, backing plate support,
cutout template, paint shield
Dim (H x Dia.): 6.9” x 7.1” (176mm x 181mm)Sold as a pair,
