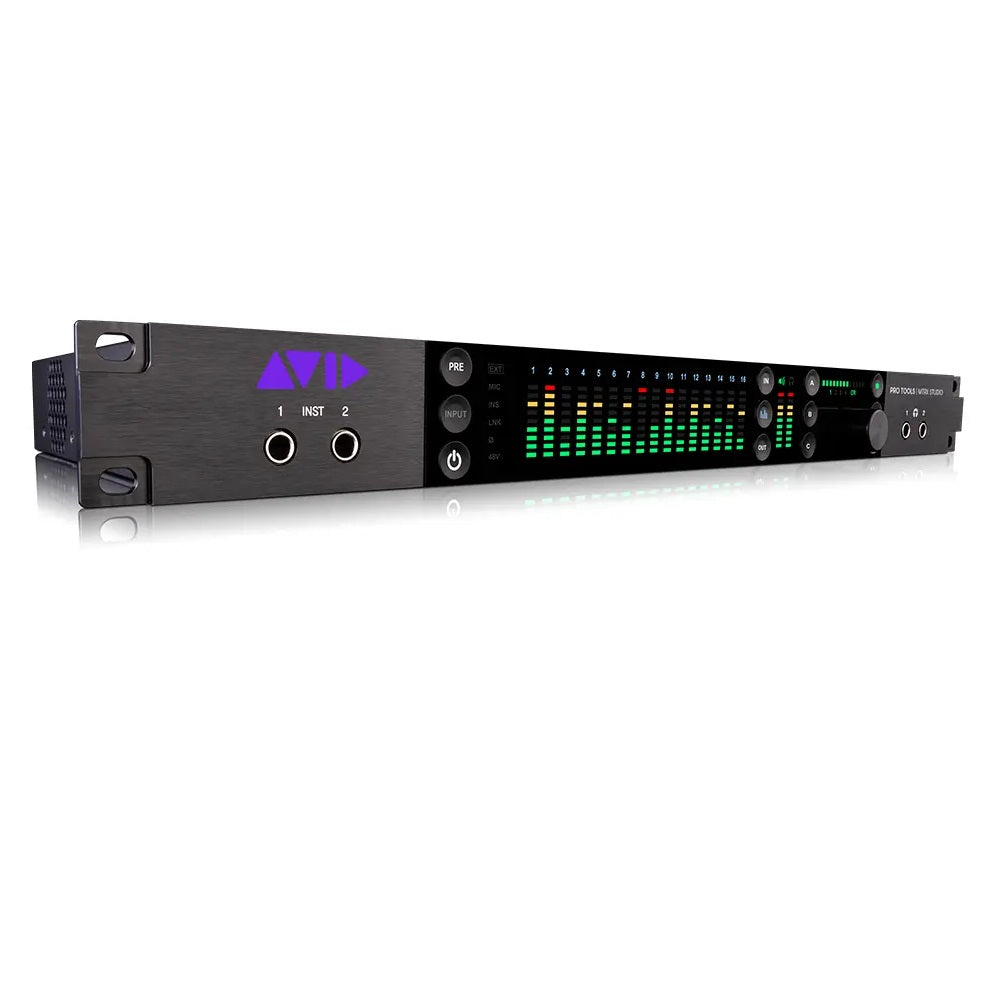

Avid Pro Tools MTRX Studio 16x16 Audio Interface

Pro Tools Digilink Audio Interface with Dante, DigiLink, and ADAT Connectivity

The Avid Pro Tools | MTRX Studio is a versatile, self-contained I/O, monitoring, and routing unit optimized for music and post-production facilities of all sizes. Packing Dante, DigiLink, and ADAT connectivity, MTRX Studio packs tons of functionality in a compact form factor and consolidates multiple devices in your signal chain. From recording and monitoring to networking audio across multiple rooms and devices, tuning your speakers and saving monitor profiles, and folding down multichannel mixes, the Avid Pro Tools | MTRX Studio makes a perfect centerpiece for your studio.

• Streamline your studio

Connect all your gear to a single interface that provides ample I/O, including 18 channels of analog I/O, 64 Digi Link channels, 64 Dante channels, and 16 ADAT channels

• Get unparalleled sound clarity

Capture and output audio without any coloration—exactly as the sources sound—with impeccably clean, transparent, and highly detailed AD/DA conversion

• Tackle any production

Mix and monitor mono, stereo, surround, and Dolby Atmos projects with ultra-low latency, integrated speaker calibration, and a 256x32 summing mixer

• Feed any input to any output

Route, split, and patch audio across multiple devices and rooms in your facility with the 512 x 512 matrix router

• Expand your workflow

Route audio over IP with Dante, work with multiple DAWs, and connect to Pro Tools | HDX and/or a Mac or PC (with the Thunderbolt 3 option), enabling new creative possibilities

• Compact 1RU chassis
• Computer Connection: 2 Digilink ports
• Mic/Inst Inputs: 2 x 1/4", 2 x XLR
• Analog I/O: 16 x 16 (DB-25) + 2 x 1/4""
• Dante I/O: 64 channels
• ADAT I/O: 16 x 16
• Monitor Profiles
• Monitor Groups, Fold Downs, Group Formats
• Integrated Speaker Processing
• 256 filters on 16 channels
• Routing Matrix: 512 x 512
• Sample Rate: 44.1kHz–192kHz

• Type:Pro Tools HD/HDX Interface
• Analog Inputs:2 x 1/4" (Hi-Z), 2 x XLR (mic), 2 x DB-25 (line)
• Analog Outputs:2 x DB-25 (line), 2 x 1/4" (monitor)
• Digital Inputs:Ethernet (Dante), Mini-DigiLink, 2 x Optical Toslink (ADAT)
• Digital Outputs:Ethernet (Dante), Mini-DigiLink, 2 x Optical Toslink (ADAT)
• Headphones:2 x 1/4"
• Data I/O:2 x Ethernet, 2 x Mini-DigiLink
• Rack Spaces:1U
• Width:19"
• Simultaneous I/O:64 x 64 (Dante), 16 x 16 (analog, ADAT)
• A/D Resolution:24-bit/192kHz
