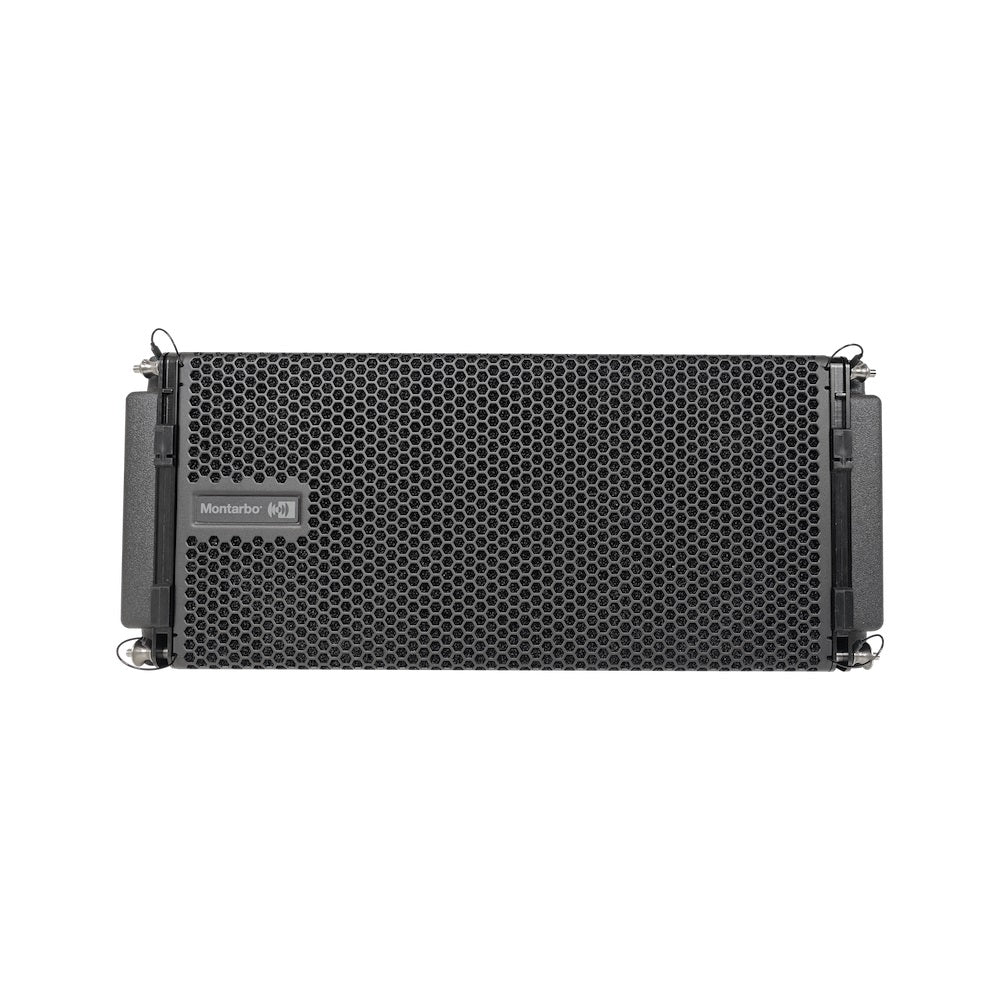

Montarbo Nettuno L28 2x8" Active Line Array per unit 1000 W RMS Class D amplifier //// Special Order ////

Montarbo L28 is a compact and highly versatile powered line array module, designed to integrate seamlessly into a wide range of professional sound reinforcement systems. Thanks to its output capability, exceptional flexibility, and uniform coverage, it is an ideal solution for both touring and installed applications. Engineered for demanding environments, the L28 delivers consistent reliability and a distinctive sonic signature in any setting.

Nettuno L28 incorporates two 8-inch ferrite woofers and a 1.4-inch neodymium compression driver with a 3-inch voice coil, powered by a Montarbo-engineered 1000 W RMS amplifier featuring integrated DSP and FIR filtering. Its symmetrical waveguide and phase-plug architecture deliver exceptional efficiency, achieving an optimal balance of compact form factor, refined industrial design, and impressive acoustic output.

Deployment is streamlined and intuitive: up to 20 cabinets can be configured using only two rotary encoders, with coupling and HFC presets readily accessible. With a 100° horizontal dispersion, the L28 ensures smooth, uniform coverage across wide or acoustically challenging medium-size environments. External processing is unnecessary—the built-in high-frequency compensation provides precise control over each cabinet’s throw, enabling effortless system optimization.

When paired with the Nettuno S181 or S182 subwoofers, the L28 forms a coherent and scalable system capable of delivering focused energy and consistent performance for audiences of up to 5,000 people.

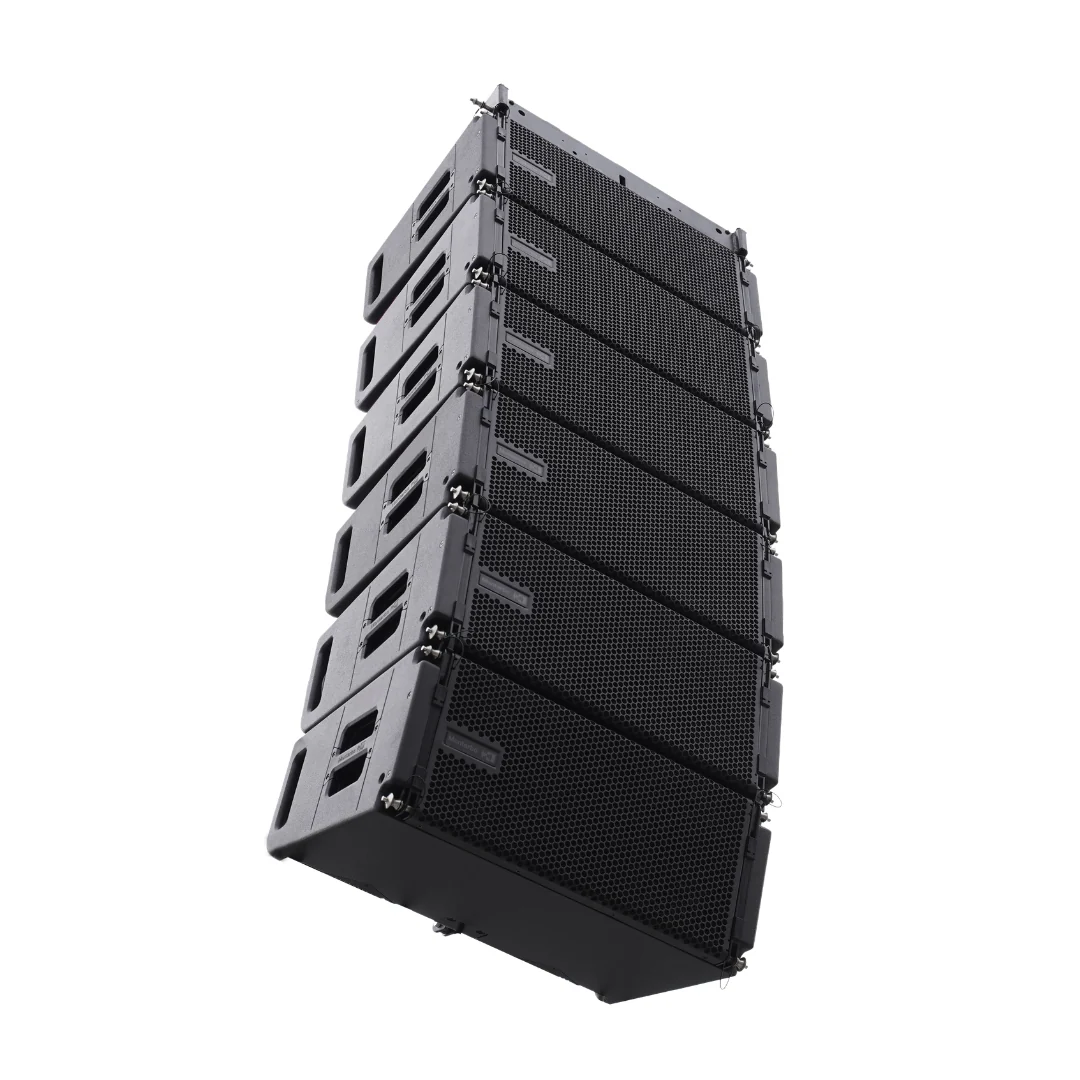

The Nettuno L28 is sold as a single unit. Multiple units are required to configure and achieve a line array system.

The Nettuno L28 is equipped with two 8” ferrite woofers and a 1.4” neodymium compression driver with a 3” voice coil, powered by a 1000 W RMS amplifier module designed byMontarbo, featuring onboard DSP and FIR filtering. Its symmetrical waveguide and phase plug design ensure high efficiency, achievingan optimalbalance between compact formfactor, refined industrial design, and impressive acoustic performance.

•


  Speaker Type
  Two-way, Active Line Array Element

  Frequency Response [-6 dB]
  75Hz – 15.6 KHz

  Max SPL
  135.5dB

  Dispersion
  100°




  HF
  1.4″ – 3″ V.C.

  LF
  8″ – 2″ V.C.

  Crossover Frequency
  940 Hz







  Amplifier

  Amp Class
  D

  RMS Power
  1000 W

  Peak Power
  2000 W

  Cooling
  Conventional




  DSP

  Advanced Functions
  8 presets / Linear phase – FIR filters

  DSP
  28/48 Bit

  AD/DA Converter
  24Bit / 48kHz

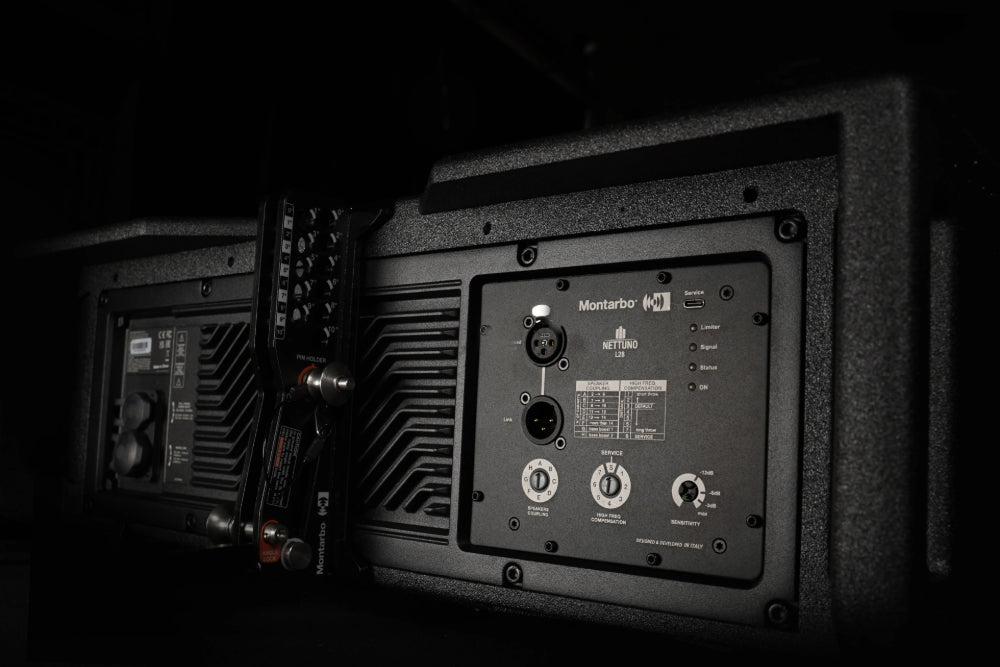

  Controls
  CH1 level
  User/Service switch
  Limiter/Sign./ Status/On leds
  USB C-TYPE port




  Connectors
  Power Connectors
  IN/OUT 110-240V AC













  Enclosure

  Dimensions
  W x H x D
  600 x 260 x 390 mm
  [23,62” x 10,24” x 15,35”]

  Weight
  23.4 Kg
  51.6 Lbs

  Cabinet
  PLYWOOD 12/15mm – POLYUREA COATING
