Dynacord CMS 1600-3 Compact 16-Channel Mixer
Regular price QAR 8,800
SKU : DY*CMS1600-3
Dynacord CMS 1600-3 Compact 16-Channel Mixer
QAR 8,800
Dynacord CMS 1600-3 Compact 16-Channel Mixer
Product Description

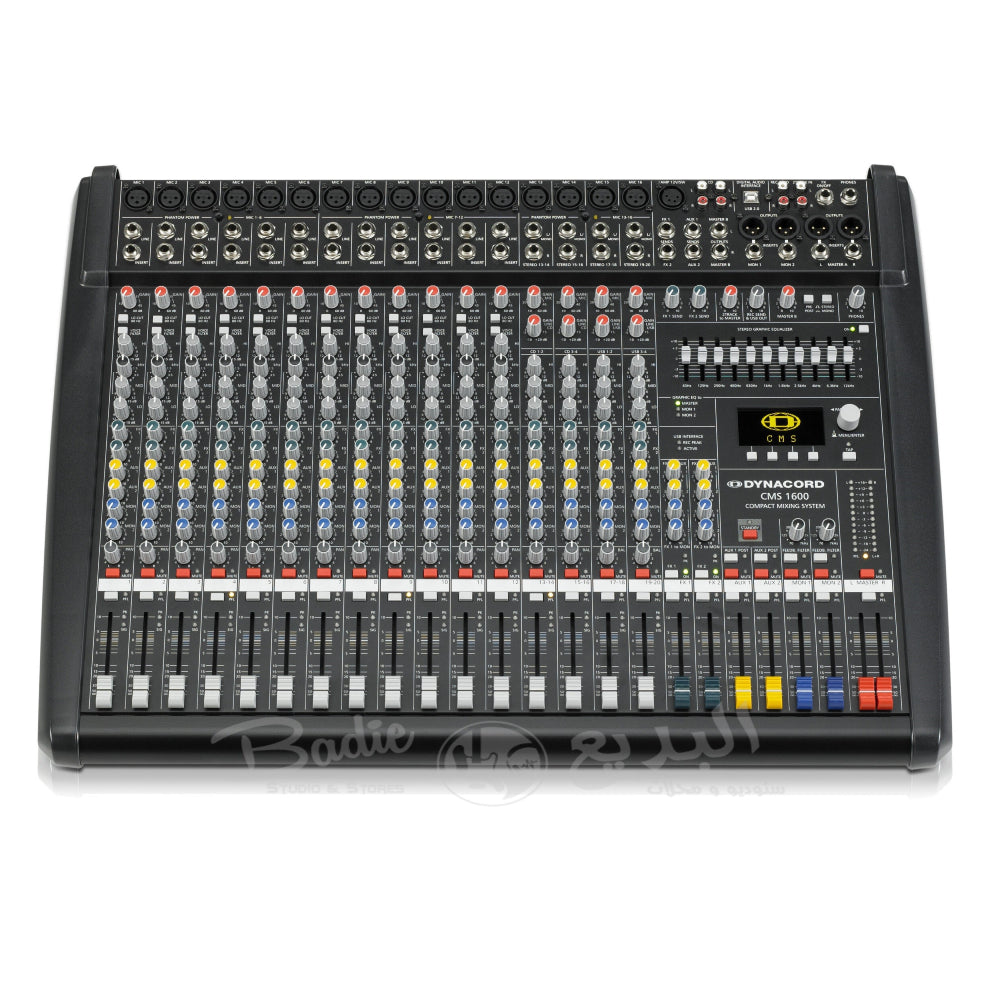

The CMS 1600-3 Compact 16-Channel Mixer from Dynacord features 12 mic/line and four mic/stereo-line channels. There are six auxiliary ports, two with pre, two with post, and two with pre/post switchable faders. Two effects processors offer 100 factory presets and a TAP key allows precise setting of delay times. Each preset can be edited and stored to 20 user memories.
The built-in USB audio interface shares four playback and four recording channels simultaneously with a PC or Mac, following studio standard 24-bit, 96 kHz. An additional MIDI interface allows integration of instruments such as keyboards. The 11-band stereo graphic equalizer can be routed to master or monitor channels.
| Channels | 12 x Mic/Line 4 x Mic/Stereo Line |
| Auxiliary | 2 x Pre (MON) 2 x Post (FX) 2 x Pre/Post Switchable (AUX) |
| Gain | Microphone (Mono/Stereo): 0 to 60 dB / 10 to 60 dB Line/CD/USB (Stereo): -10 to 20 dB |
| Maximum THD @ 1kHz | Microphone Input to Master A L/R Outputs, +16 dBu, Typical: < 0.005% Frequency Response, -3 dB, ref. 1 kHz, any input to any Mixer Output: 15 Hz to 70 kHz |
| Crosstalk @ 1 kHz | Fader and FX/AUX/MON-Send Attenuation: > 85 dB Channel-to-Channel: < -80 dB CMRR, Microphone Input:> 80 dB Input Sensitivity (All Level Controls in Max. Position Microphone / Line, Mono / Line, Stereo / CD, Stereo): -74 dBu (155 µV) / -54 dBu (1.55 mV) / -34 dBu (15.5 mV) / -34 dBu (15.5 mV) |
| Maximum Level | Microphone Inputs: 21 dBu Mono Line Inputs / Stereo Line Inputs: 41 dBu / 30 dBu All Other Inputs: 22 dBu All Other Outputs: 22 dBu |
| Input Impedances | Microphone / Insert Return: 2 Kilohms / > 3.3 Kilohms 2-Track Return and CD Input: 10 Kilohms All Other Inputs: > 15 Kilohms |
| Output Impedances | Headphones: 47 Ohms All Other Outputs: 75 Ohms |
| Equivalent Input Noise | Microphone Input, A-Weighted, 150 Ohms, -130 dBu Noise, Channel Inputs to Master A L/R Outputs, A-Weighted Master Fader Down: -97 dBu Master Fader 0 dB, Channel Fader Down: -89 dBu Master Fader 0 dB, Channel Fader 0 dB, Channel Gain Unity: -82 dBu |
| Equalization | LO Shelving: ± 15 dB / 60 Hz MID Peaking, Mono Inputs: ± 15 dB / 100 Hz to 8 kHz MID Peaking, Stereo Inputs: ± 12 dB / 2.4 kHz HI Shelving: ± 15 dB / 12 kHz Master EQ 11-Band (63, 125, 250, 400, 630, 1 kHz, 1.6 kHz, 2.5 kHz, 4 kHz, 6.3 kHz, 12 kHz): ± 10 dB / Q = 1.5 to 2.5 |
| Power Consumption | 50 W without Lamp, 55 W with Lamp |
| Filter | LO-CUT, Mono Inputs: f = 80 Hz, 18 dB/oct. Voice Filter, Mono Inputs: Switchable Feedback Filter, MON 1/2: 70 Hz to 7 kHz, Notch, -9 dB |
| Effects | Type, Effects Presets: Dual Stereo 24/48-Bit Multi-Effects Processors, 100 Factory + 20 User, Tap-Delay, Remote Control Footswitch, MIDI Display: 128 x 64 pixels, OLED |
| Digital Audio | Channels: 4 Inputs / 4 Outputs AD/DA Conversion, Sampling Rate 24-Bit, 44.1 / 48 / 88.2 / 96 kHz PC Interface: USB 2.0, Female Type-B MIDI Interface: 5-Pin DIN Connector, Input / Output |
| Mixer Output Connections | MON 1, MON 2, Master A (Relay Controlled) |
| Power Supply | Switching Mode µC Controlled: Mains Over/Undervoltage, High Temperature |
| Phantom Power | 48 VDC (Switchable in Groups) |
| Power Requirements | 100 to 240 VAC, 50/60 Hz (SMPS with Auto Range Mains Input) |
| Safety Class | Not Specified by Manufacturer |
| Ambient Temperature | Not Specified by Manufacturer |
| Dimensions | 26.1 x 6.1 x 19.6" / 663.5 x 155 x 498.5 mm |
| Weight | 26.5 lb / 12 kg |
