The series is comprised of 4 wooden cabinets from 8 inches up to 15 inches, plus a single 15 and a single 18 active subwoofers. The full range cabinets allows for an impressive sound pressure as well as a clear, faithful reproduction of the vocal range. In facts, the sound processing takes advantage of FIR filters, resulting in a linear phase response and a very clear sound performance.

4 preset EQs, easily selectable on board, make prevision for maximum versatility in different applications, comprising wedge use. R series full-range speakers feature 2 Input channels with independent level controls, 1 mic/line combo input and an additional combo line in. A switch on the output channel allows users to select a link output signal or a mix between the 2 input channels.

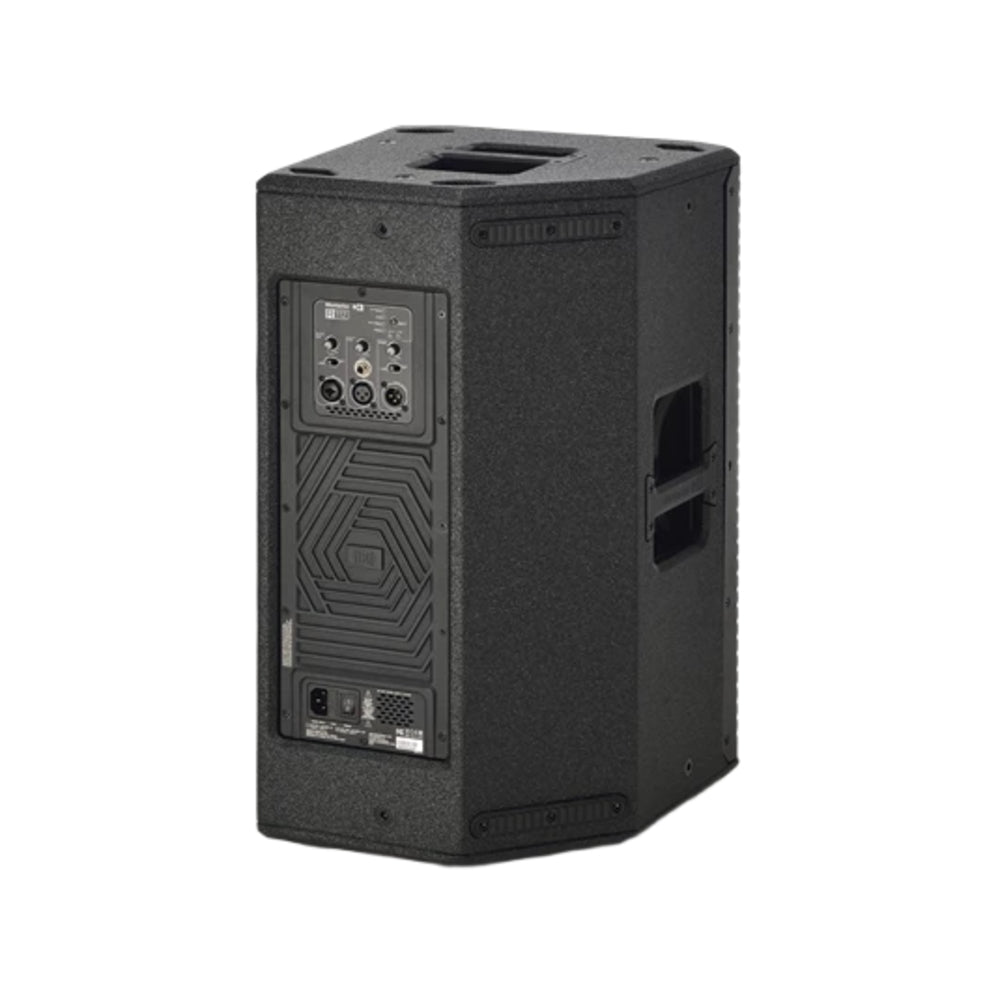

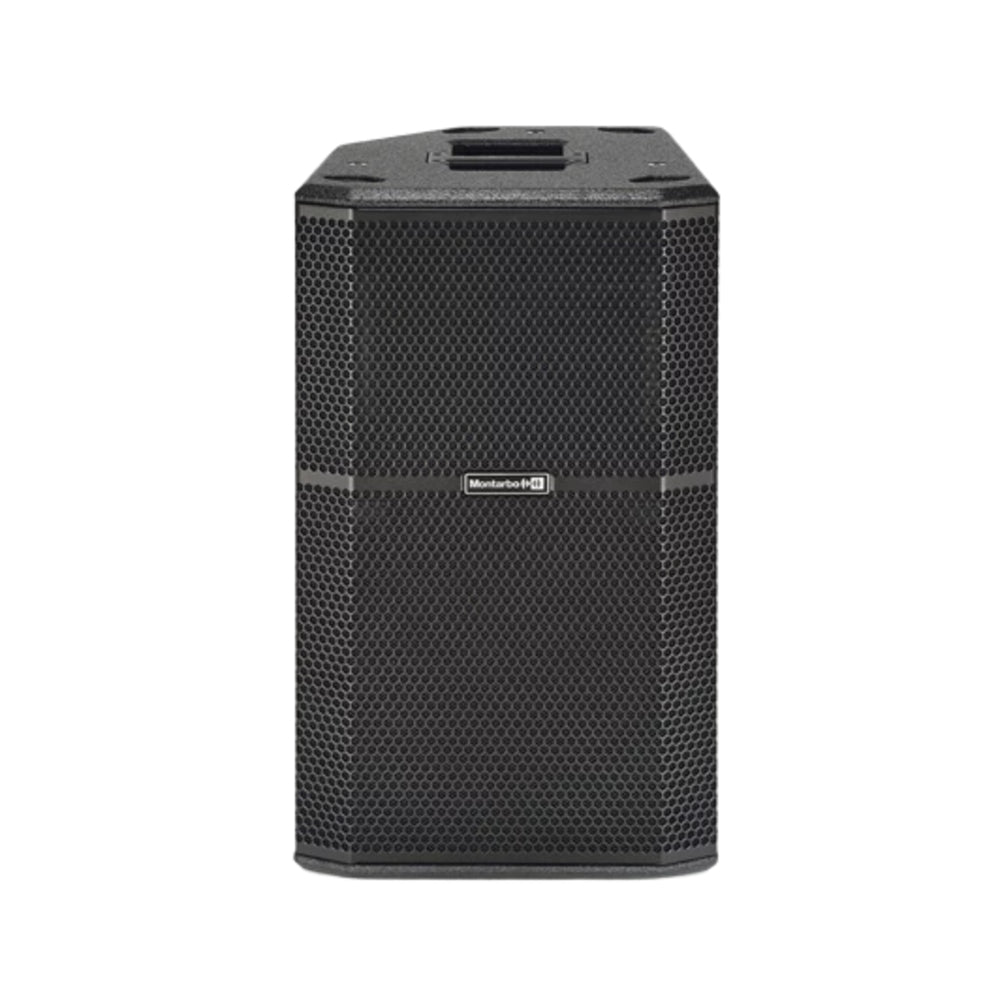

The wooden enclosure of R series features a black elegant finish and a very clean design with aluminium handles which are flush with side panels, contributing to a very professional overall appearance.

Acoustical Data

Speaker Type	2-way Active bass reflex
Frequency Response [-10 dB]	51 Hz - 20 kHz
Max SPL	131 dB
HF	1.75" driver
LF	12" - 3" VC
Dispersion	90° H x 40° V
Crossover Frequency	1.5 kHz

Amplifier

Amp Class	D
RMS Power	600 W
Peak power	1200 W
Cooling	Passive Radiator

DSP

Advanced Functions	FIR Filters
DSP	28/56 Bit
AD/DA Converter	24 bit, 48 kHz

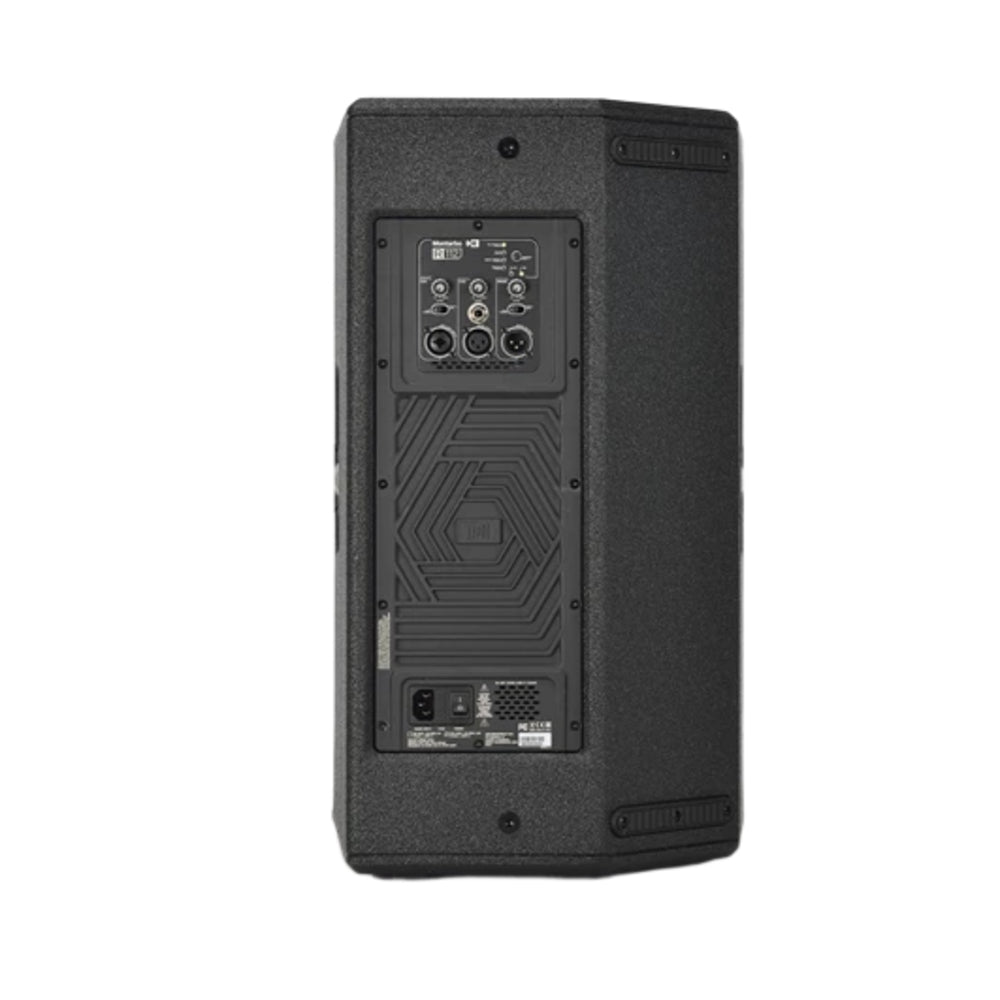

Controls	Channel level, MAIN level, PRESET, Channel 1 sensitivity, LINK/MIX output
Connectors	CH1: Combo, CH2: XLR-F + 6.35 mm jack (1/4”), LINE OUT: XLR-M

Enclosure

Dimensions W x H x D	359 x 610 x 350 mm [14.2” x 24” x 13.8”]
Weight	21 kg [46.3 lb]
Cabinet	Multilayer wood with polyurea finish

Montarbo R112 Active 12-inch wooden speaker 600W RMS/1200W Peak
